Space frame structures for large-span roofs in Pakistan.

Bolted ball-node space frame systems, with engineering, fabrication and erection scope agreed for each project.

Geometry
Roof form and clear-space requirements
Supports
Column grid and building interfaces
Design basis
Project loading and engineering review
Delivery scope
Responsibilities, evidence and programme
The systemLX-01

One contract, from geometry to handover.

Nine stages, one accountable party. Scroll to follow a roof from the first drawing to handover.

Start with the roof and its supports

LATTIX uses bolted ball-node space frame systems for roof structures. Start with the architectural plan, support arrangement and required roof geometry. These project inputs connect the system discussion to design, fabrication and erection requirements.

Explore roof geometries · See building applications · Prepare a project enquiry

STAGE 01 / 09

Design and engineering

Indicative model · 30 × 36 m · 3.0 m module
960 members · 263 nodes
Scroll to build · drag to rotate
MEMBER UTILISATION · INDICATIVE
lowhigh
HANDOVER FILEQA file issuedAs-built drawingsStructural sign-off
The connectionLX-02

Bolted ball-node construction.

Seven parts and no site welding. Pull the slider to take one joint apart; the labels identify each part.

HS BOLT10.9 · thread into ball BOLT BALLforged · threaded bores PINlocks sleeve to bolt HEX SLEEVEcompression spacer CONEbolt head inside V RINGweld backing CHS TUBEASTM A500 · cut and bevelled SHOP GIRTH WELD · the only weld node Ø by analysis sleeve + cone SIDE ELEVATION · NOT TO SCALE · MEMBER SIZES BY ANALYSIS EXPLODED
100%
1
One axis. Ball bore, bolt, sleeve, cone and tube are concentric on the member axis in both states.
2
Sleeve reads as a rectangle. A hex prism seen side-on, with the two hex edges shown as lines. It sits between the ball's milled face and the cone.
3
Pin is radial. It goes through the sleeve wall into the slot in the bolt shank, so turning the sleeve turns the bolt into the ball.
4
Bolt head inside the cone. The shank passes out through the cone's small end. The thread runs into the ball.
5
V ring behind the weld. Backing ring inside the tube end. The cone-to-tube girth weld is the only weld, done in our shop.
ASSEMBLY LOGICThe bolt and cone are fitted before the girth weld. On site the fitter turns the hex sleeve, the pin drives the bolt into the ball, and the sleeve ends up clamped between the ball face and the cone.

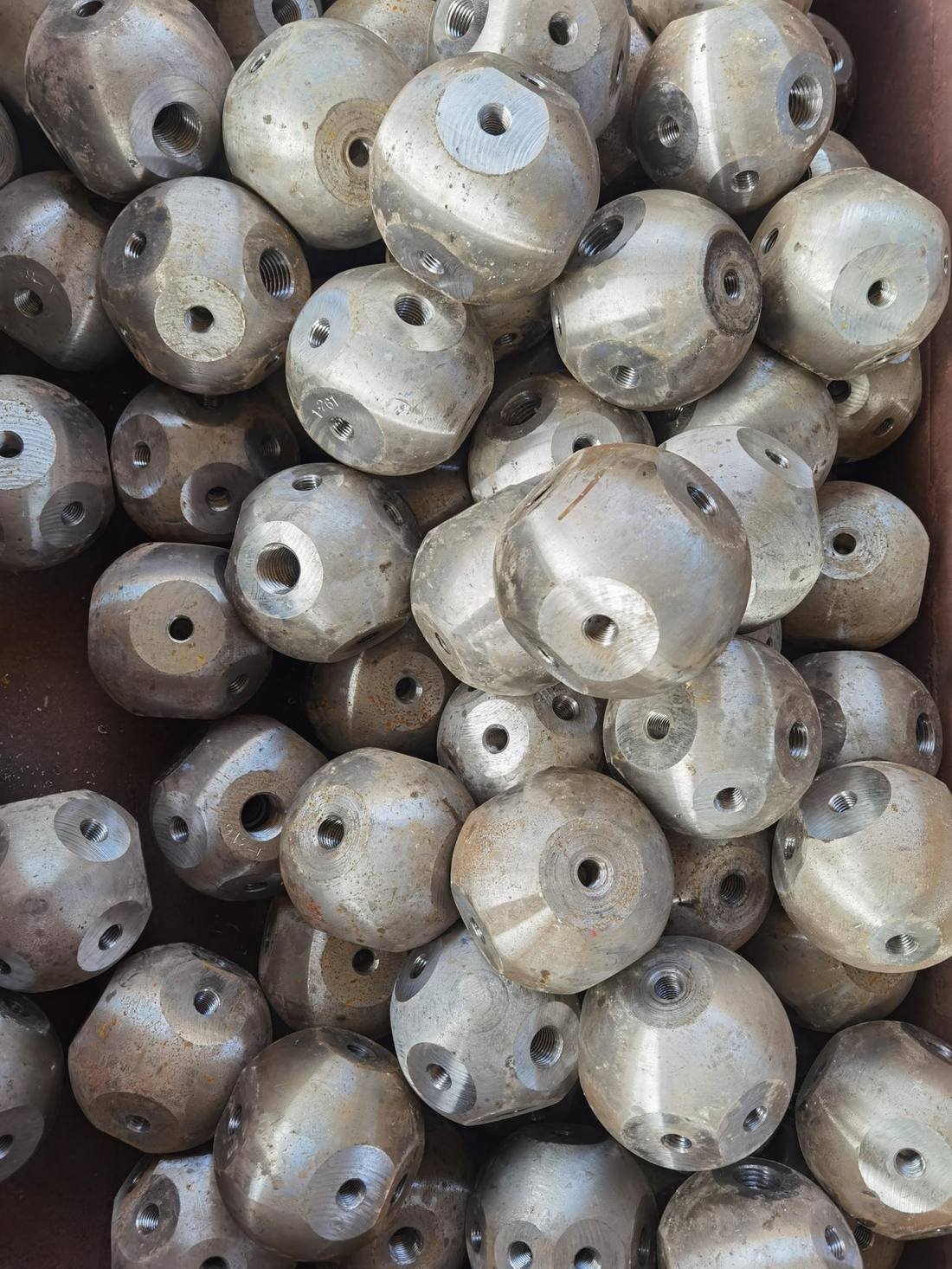

Machined bolt-ball nodes with threaded bores
Machined nodes

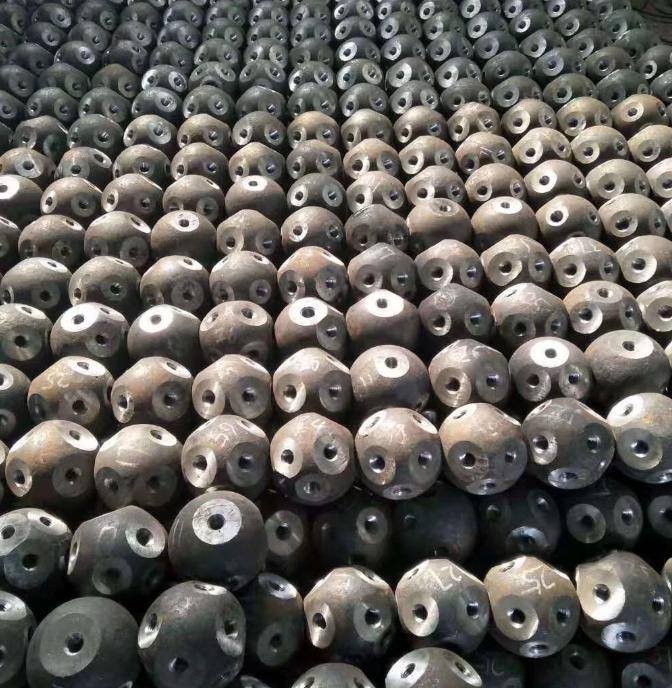

Stock of forged ball nodes
Forged node stock

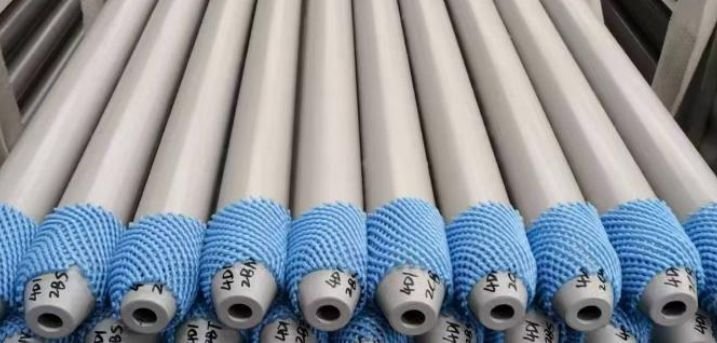

Finished members with cones, coated and tagged
Finished members

Photography · manufacturing partner

GeometryLX-03

The grid takes the shape of the building.

A space frame is a method, not a shape. Pick a form and drag it round. The connection logic is identical; only the geometry changes.

Flat double-layer grid
15 – 50 m
Industrial sheds, warehouses, logistics halls
Drag to rotateIndicative geometry
Selecting the systemLX-04

Size your roof in ten seconds.

Set the building footprint. You get a first-pass depth, grid module and steel range, and an honest answer on whether a space frame makes sense.

40m
60m

First pass for a uniformly loaded double-layer grid on four-side support, depth ≈ span / 20. Two-side support, heavy suspended loads, cantilevers and free-form all change it. Steel on a 20 to 30 kg/m² planning basis. Illustrative only; not structural design, a quantity take-off or a quotation.

2,400m²
Roof area
2.0m
Structural depth
1.5–3.0m
Grid module
48–72t
Steel, planning range
INDICATIVE ONLYAll parameters shown are indicative. Final shape, depth and steel weight can only be determined after full structural design.

Turn the preview into a project brief.

For space frame, gridshell and long-span roof enquiries, read the space frame roof-planning guide alongside these inputs.

The calculator illustrates a particular roof arrangement. Use this check before carrying its outputs into a project discussion. It does not select members, approve supports or produce a quotation.

InputBasis stated for this previewFlag for engineering review
Support arrangementA double-layer grid supported on four sides.Two-side support, cantilevers or an unconfirmed support layout. Attach a plan identifying actual supports and the clear area required.
LoadingA uniformly loaded grid with an illustrative planning basis.Heavy suspended loads or other loading information that differs from this basis. Attach the available loading schedule or mark it unconfirmed; do not invent values to complete the brief.
Roof formThe simplified arrangement described beside the controls.Curved, domed or free-form requirements. Provide a section or geometry reference and use the geometry viewer for discussion, not proof of suitability.
OutputsIndicative depth, grid and steel range.Final shape, depth and steel weight require structural design. Do not treat the displayed range as a quantity take-off or order quantity.

Keep the assumptions with the enquiry

Edit and copy this outline into your project email. It is separate from the calculator and does not capture its values automatically. Nothing is sent or deliberately saved by this template; copy your notes before leaving.

Continue with the quotation-scope questions and project enquiry checklist. Review the brief and email info@seedpk.com. Preparing notes here does not confirm receipt or engineering acceptance.

Plan a space frame roof in Pakistan.

Spaceframe, also written space frame, describes the structural system rather than a single roof shape. For a long-span roof structure in Pakistan, start with the clear space the building needs, its supports and the proposed roof form. LATTIX’s bolted ball-node system, geometry viewer and project information help frame that discussion. They do not select the structure for a particular building.

Space frame, curved roof or gridshell: describe the actual requirement.

The geometry viewer illustrates flat grids, vaults, domes and other roof forms. The project and reference sections also show different applications. A similar appearance does not establish that two roofs use the same structural arrangement or connection detail.

If the brief calls for a gridshell, a single-layer lattice vault or a glazed roof, identify that explicitly. Provide the architectural form, support locations and intended covering. Ask the project engineer to confirm the structural arrangement, connection system and interfaces for that brief. The double-layer planning calculator must not be used as a design or quantity calculation for those alternatives.

Make the long-span requirement precise.

Show the area that must remain clear, the proposed column or edge-support locations, and any constraints on roof depth. Include the building use, plan and sections, available site information, intended covering and any suspended services or other stated load requirements. Mark unknown inputs as unconfirmed.

The roof-input checklist distinguishes the calculator’s simplified four-side-supported double-layer arrangement from cases that need a different assessment. Its figures are an early planning illustration; engineering, quantities and pricing require the actual project basis.

Agree the package and the interfaces.

When requesting a proposal, identify the work being requested and the documents already available. Clarify responsibility for the roof structure, supports, roof covering or glazing, interfaces with other trades, and site access and erection arrangements. These are questions for the proposed contract scope, not an assertion that every item is included.

Use the quotation questions to ask which drawings, calculations, material records and inspection documents apply to the proposed work. Confirm the required design basis and the review responsibilities for the project; a standard named on this website does not replace a project-specific engineering submission.

Read project evidence in its stated context.

The project section explains how to request relevant references and distinguish project records from manufacturing-partner images. Keep contracted or manufacturing-stage work distinct from completed work, and retain the stated attribution of reference and manufacturing-partner photographs. A reference image is useful for discussing form; it is not proof that the pictured project was delivered by LATTIX in Pakistan.

For a comparable project, ask which published example is relevant to the proposed geometry, scope and delivery stage, and what supporting information can be shared. Do not infer an identical span, connection, finish or programme from a photograph.

Start the roof discussion.

Prepare the roof enquiry brief, then review your proposal request. Include the plan, the intended form and the decisions still open. You can also use your own email app to contact info@seedpk.com. This guide does not submit an enquiry or certify a structural solution.

ApplicationsLX-05

Where the system is used.

Anywhere the floor has to stay open: hangars, halls, domes, stockpiles and transit roofs.

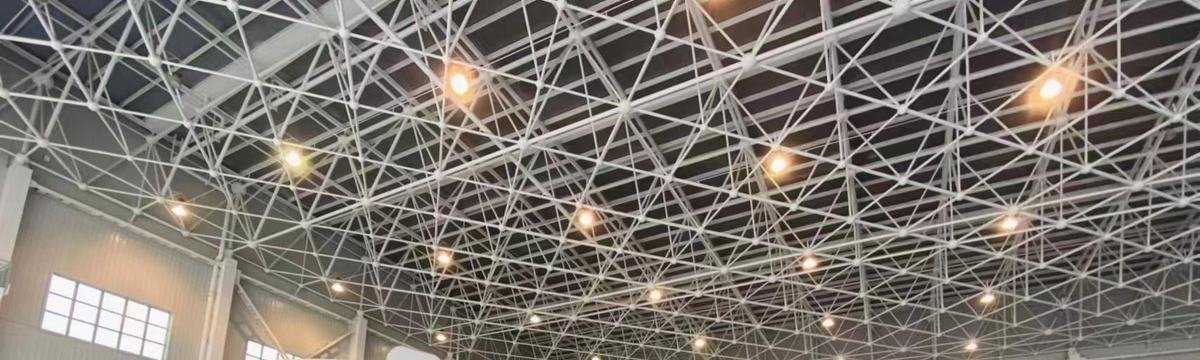

Double-layer space frame roof over a hangar
Hangars and assembly hallsClear-span maintenance and storage, 30 – 80 m

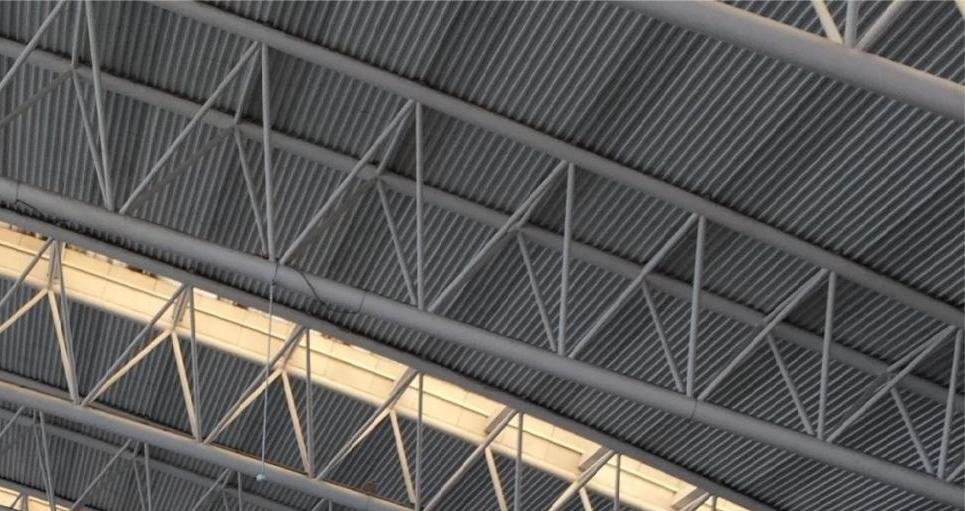

Curved space frame roof over a transit hall
Transit and terminal hallsLong-span roofs over live passenger floors

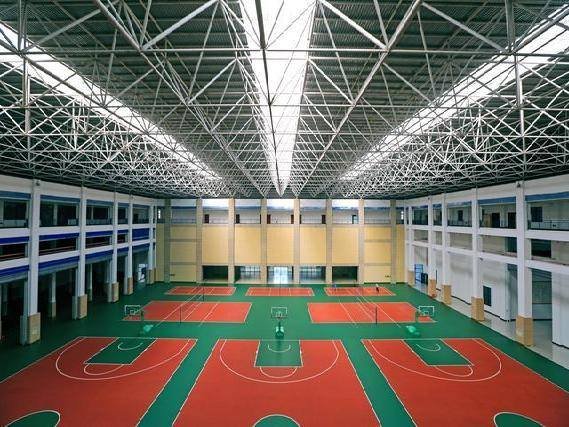

Indoor sports hall under a space frame
Sports hallColumn-free playing area

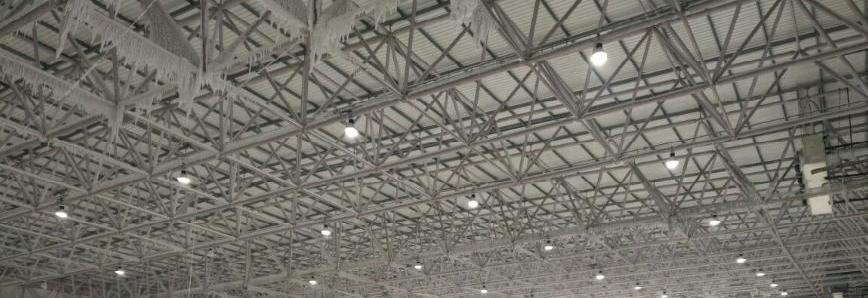

Flat space frame roof over an indoor recreation hall
Indoor recreationLong span over an insulated envelope

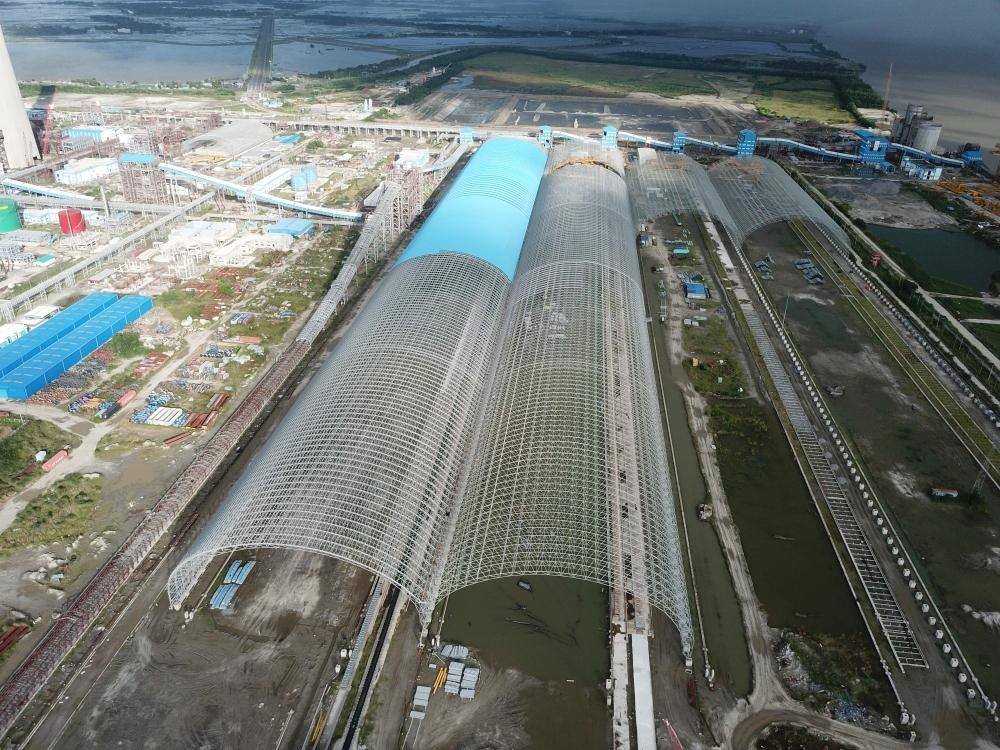

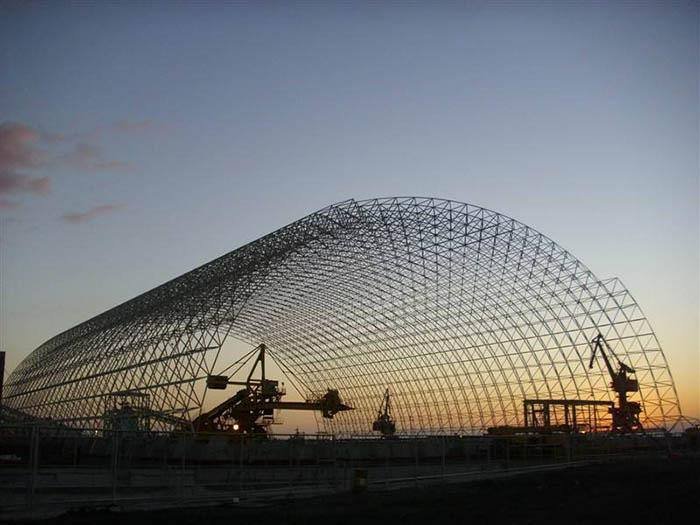

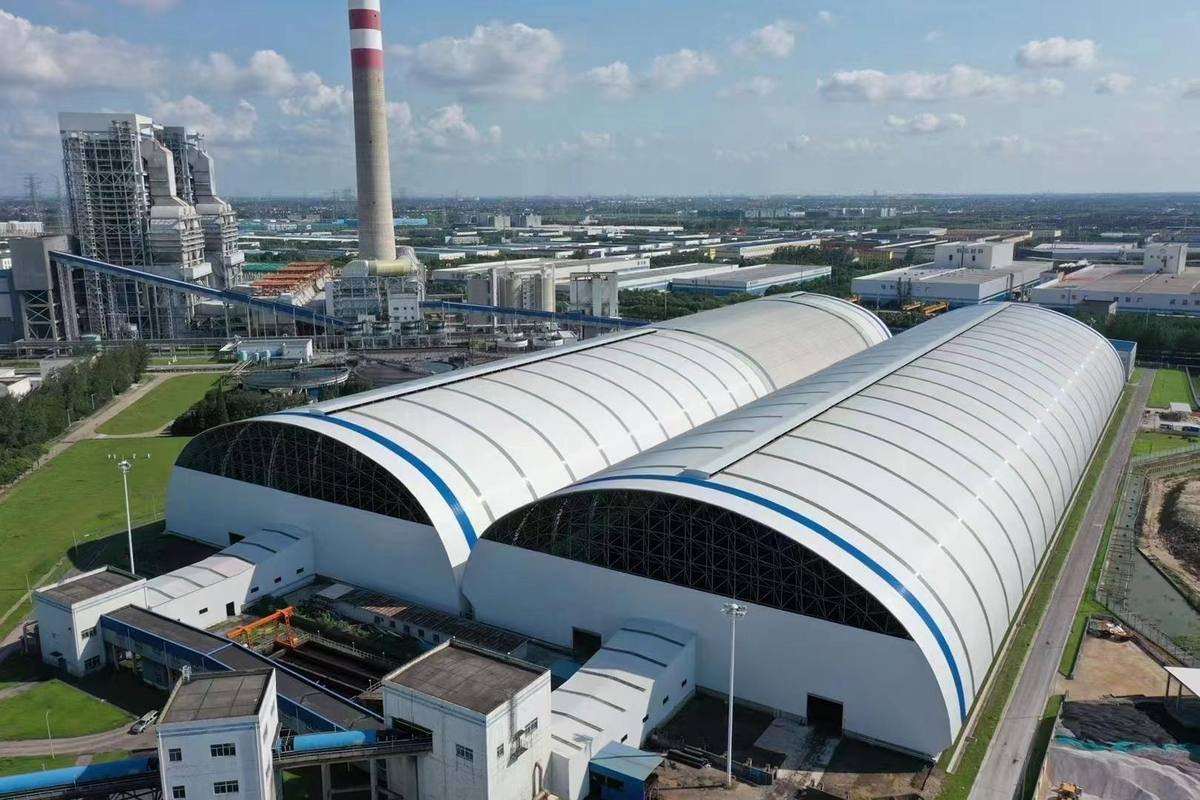

Cylindrical space frame vault over a stockpile
Stockpile and bulk storageLong-span vaults over coal yards and silos

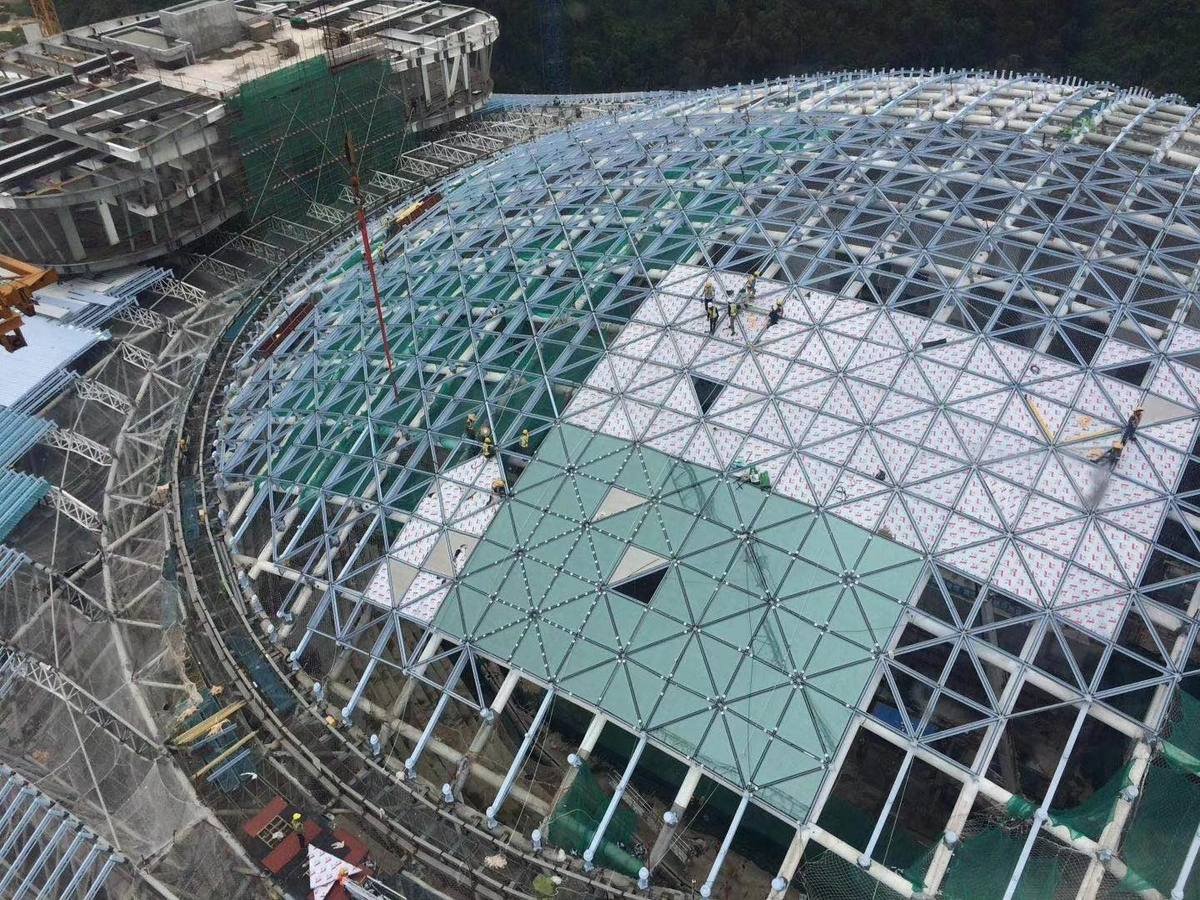

Glazed lattice dome under construction
Domes and glazed roofsLattice vaults carrying glass, 15 – 70 m

Photography · manufacturing partner

Frame the application brief

The applications above are starting points for a project discussion. Identify the building use, the area that must remain clear, the available supports and the proposed roof form. Send a plan or dimensioned sketch with the requirements you already know.

A roof visualisation does not establish structural suitability or replace project-specific engineering review. Bring the project requirements to the enquiry discussion.

Project referencesLX-06

Discuss a relevant roof reference.

Ask SEED which project references can be shared for your proposed roof form, scope and delivery stage. Confirm project status and the scope delivered when comparing examples. Concept illustrations are not as-built records.

Manufacturing partner references

Manufacturing-partner reference images.

Pictures by our manufacturing partner; not SEED project records.

ManufacturingLX-07

From member schedule to fabrication.

Supplier photographs illustrate fabrication stages. Discuss the fabrication route, approved member schedule and inspection requirements for the proposed project; these images do not establish plant ownership or available capacity.

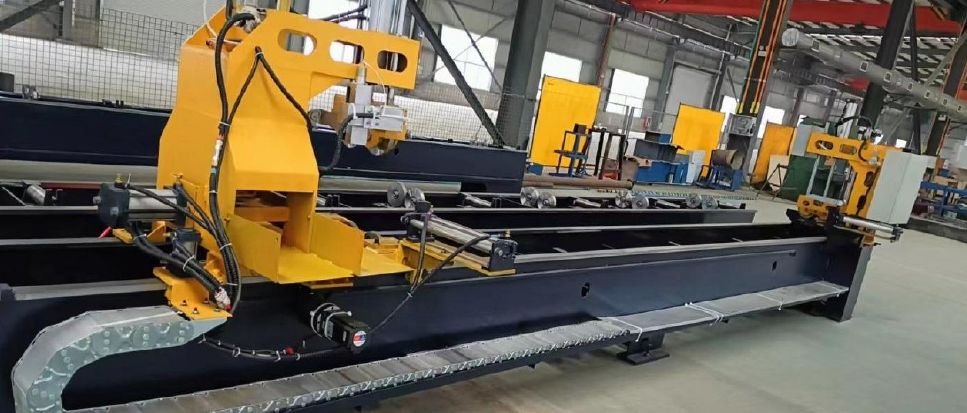

CNC plasma cutting and bevelling line
01Cut and bevel

CHS cut to the exact length on the cut list and bevelled for the weld.

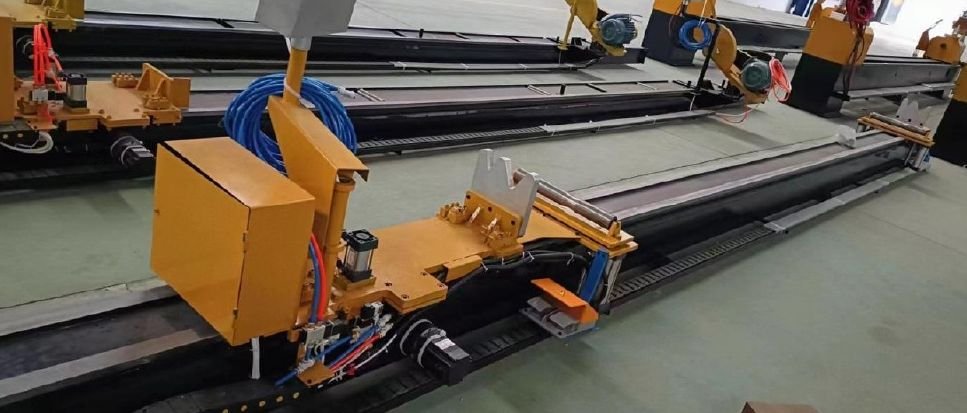

Cone-head positioning machine
02Position the cones

Cones set on both ends and tack-welded, with the bolt fitted inside.

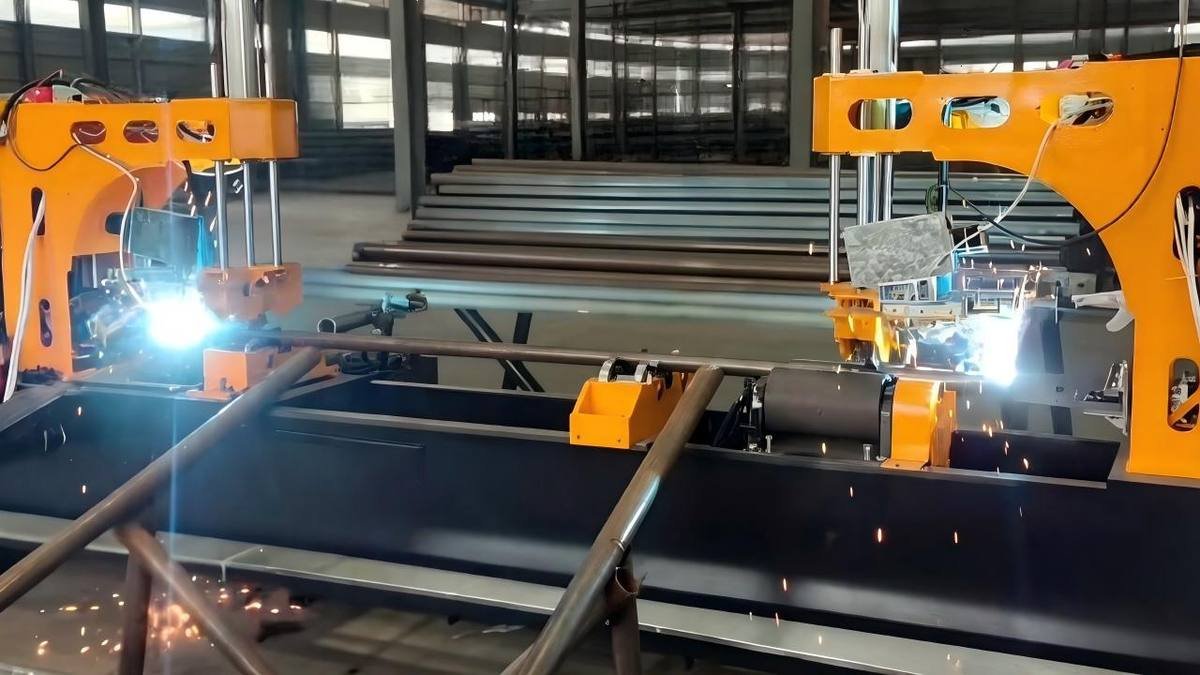

Automatic dual-head girth welding
03Girth weld

Confirm welding procedures, inspection responsibilities and acceptance requirements in the project specification.

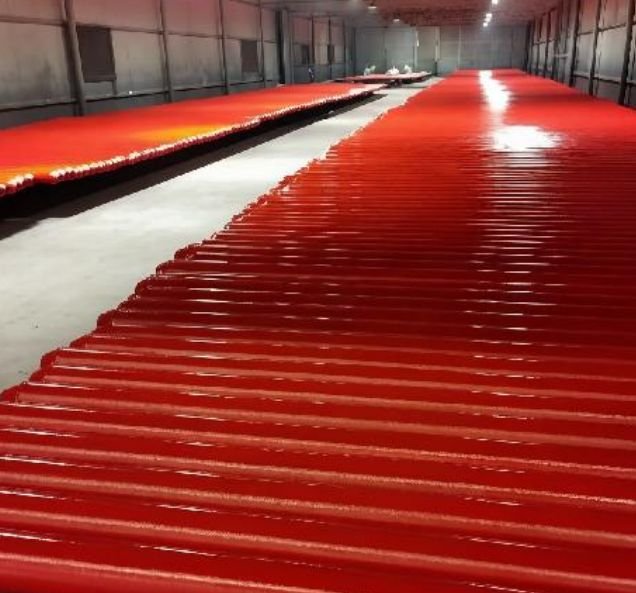

Coated members on the finishing line
04Surface treatment

Blast-cleaned and coated or galvanised to the project specification.

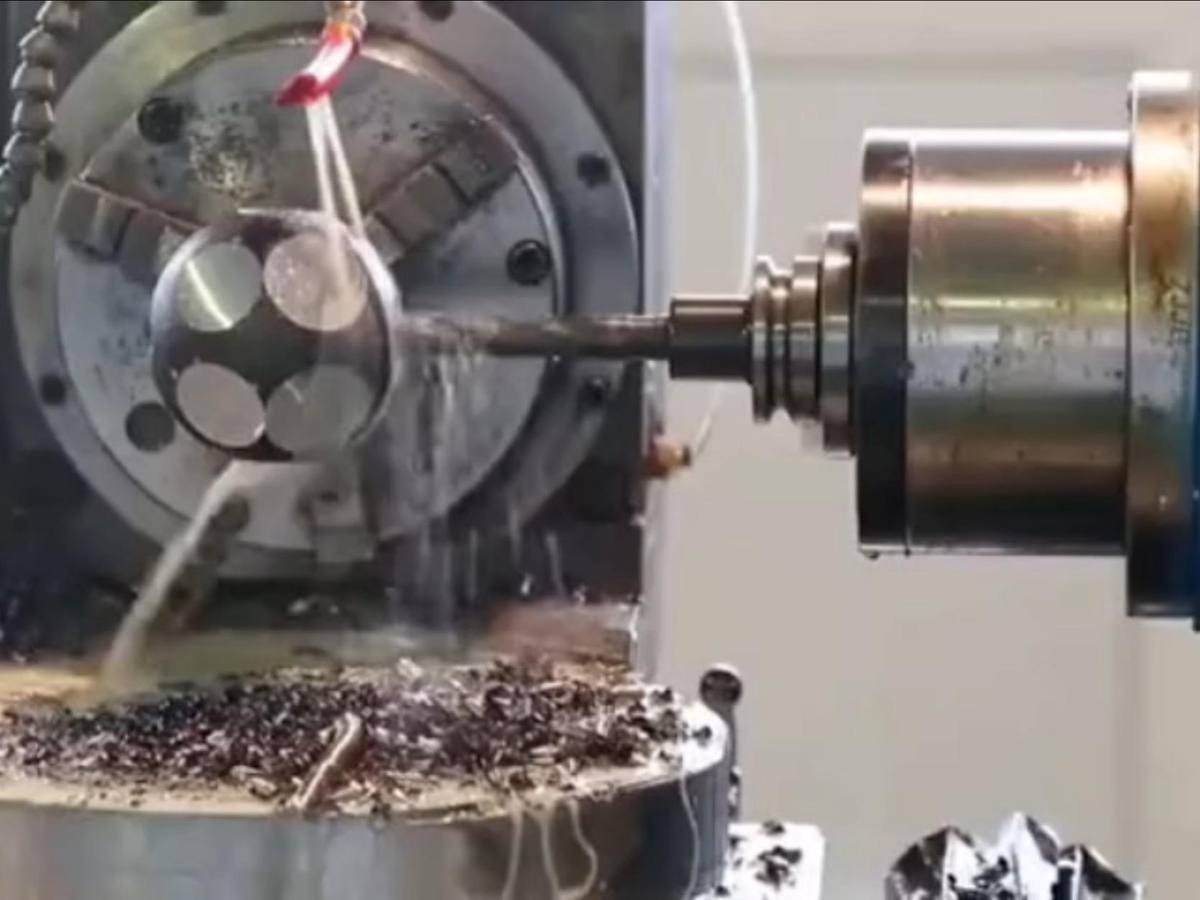

CNC machining of a ball node
05Node machining

Threaded bores cut on computed axes, so the grid closes on site.

Finished members, capped and tagged
06Tag, pack, dispatch

Every member marked to its grid position and packed by erection zone.

Pictures · manufacturing partner and equipment supplier

Delivery planning

Plan the fabrication and delivery route.

Discuss the fabrication location, procurement route, inspection requirements and programme for the proposed roof. Confirm available production capacity and project-specific lead times in the proposal rather than treating annual output as a delivery commitment.

Materials and standardsLX-09

Agree the design basis and material documentation.

The project engineer must confirm the applicable design codes, material grades, connection specifications and inspection requirements. Ask for the supporting calculations, drawings, material certificates and any applicable certification with its holder, scope and validity. A named standard or a similar grade label does not establish equivalence or certification.

Project requirementDocumentation to agree
Design basisProject design basis and review responsibilities.
Materials and connectionsMaterial and connection specifications.
Inspection and testingTraceable inspection and test documentation.
Fabrication and coatingFabrication and coating requirements.
Certification, where requiredCertification holder, scope and validity.

Compare the proposed systems against the same building brief: supports and clear space, roof form, loads, covering, fabrication and erection constraints, programme and total scope. Suitability and quantities require project-specific engineering.

Member sizes are not published. Diameter, wall thickness and node size are outputs of the structural analysis for each project, issued on the approved project drawings.

The teamLX-10

Who is responsible for what.

Three named people hold every project. You should know whom to call before you sign.

Director, SEED

Zammar Shahid

  • Commercial leadership and client relationships
  • EPC delivery across industrial and public infrastructure
Civil engineer, MBA · contract and commercial authority
Structural Engineer, LATTIX

Muhammad Ali

  • Structural design, analysis and calculations
  • Stamped drawings and shop drawing review
  • Site supervision and structural sign-off
PEC-licensed · stamps the drawings
Product Manager, LATTIX

Junaid Ahmed

  • System specification and supply route selection
  • Bills of materials and fabrication release
  • Proposals and delivery coordination
Worked inside the Xuzhou supply chain
Registration
PEC 861 (CA)Eligibility subject to tender requirements
Design codes
AISC 360 · AWS D1.1ASTM · ASCE 7 · IBC
Self-performed
Civil · structural steelCore MEP · erection
Group
SEED, founded 2016PEB arm since 2010
Start a projectLX-11

Start a space frame project discussion.

Send the information you have and identify what is still to be confirmed. The team can then clarify the scope, required inputs and next steps.

Prepare an engineer-readable enquiry

Share the drawings or sketch available, the support arrangement, clear-space requirements, proposed roof shape and any existing loading information. Mark information that is still to be confirmed rather than guessing it.

Email your brief to info@seedpk.com. Preparing an email or using the website checklist does not confirm receipt. Keep a copy of the information sent and use the team’s response to confirm any remaining requirements.

You send

  1. Architectural plan and section, or a dimensioned sketch
  2. Column grid and support conditions
  3. Clear span and any obstruction constraints
  4. Roof geometry: flat, sloped, curved or free-form
  5. Loading: live, wind zone, seismic zone, services

Discuss the required proposal scope

  1. Preliminary structural feasibility assessment
  2. Span table matched to your column grid
  3. Concept drawings: plan, section and node arrangement
  4. Commercial scope, pricing basis and exclusions
  5. Programme from bill of materials release

Before comparing space frame quotations

Use the same project brief for each quotation and ask for the scope and assumptions in writing. A rate is useful only when you know what it covers.

What is included in the scope?

Ask which party is responsible for design, members and nodes, protective finish, transport, lifting and erection. Clarify whether roof covering, drainage, supporting structures and foundations are included or handled separately. Identify exclusions and the interfaces with other trades; do not assume a website description is the agreed project scope.

What is the quotation based on?

Identify the plan and section revisions, support arrangement, roof form and loading information used. If a rate is expressed per square foot, ask which area is measured and which work is included. List unconfirmed inputs so the basis can be updated when the project information changes.

Which documents need project-specific review?

The materials and standards section explains the project-specific documentation to request. Ask which drawings, calculations, material certificates and inspection or handover records form part of the proposed scope, and who reviews them. A preliminary feasibility discussion or website visualisation does not replace the project-specific structural analysis and drawings described on this page.

Use the project enquiry checklist to assemble your inputs and the team responsibilities to identify the right discussion. Email the brief to info@seedpk.com; you can also prepare a draft in the enquiry form below, review it, and choose Send enquiry to SEED. Preparing a draft alone does not submit an enquiry.
